Database Design for a Movie Ratings and Review Website

Final project for IS 206: Intro to Database Concepts and Applications at UIUC

Languages and Tools Used

Purpose and Scope

This project consists of designing and creating an IMDb-esque movie reviews and ratings database—a platform for users to be able to access basic movie information such as cast and crew information, genre, and roles while also writing reviews, ratings, and interacting with other users’ posts. The purpose for the database is to enhance the movie experience for users with up-to-date movie details while providing insight into what kinds of movies or media resonate the most with audiences and the general public.

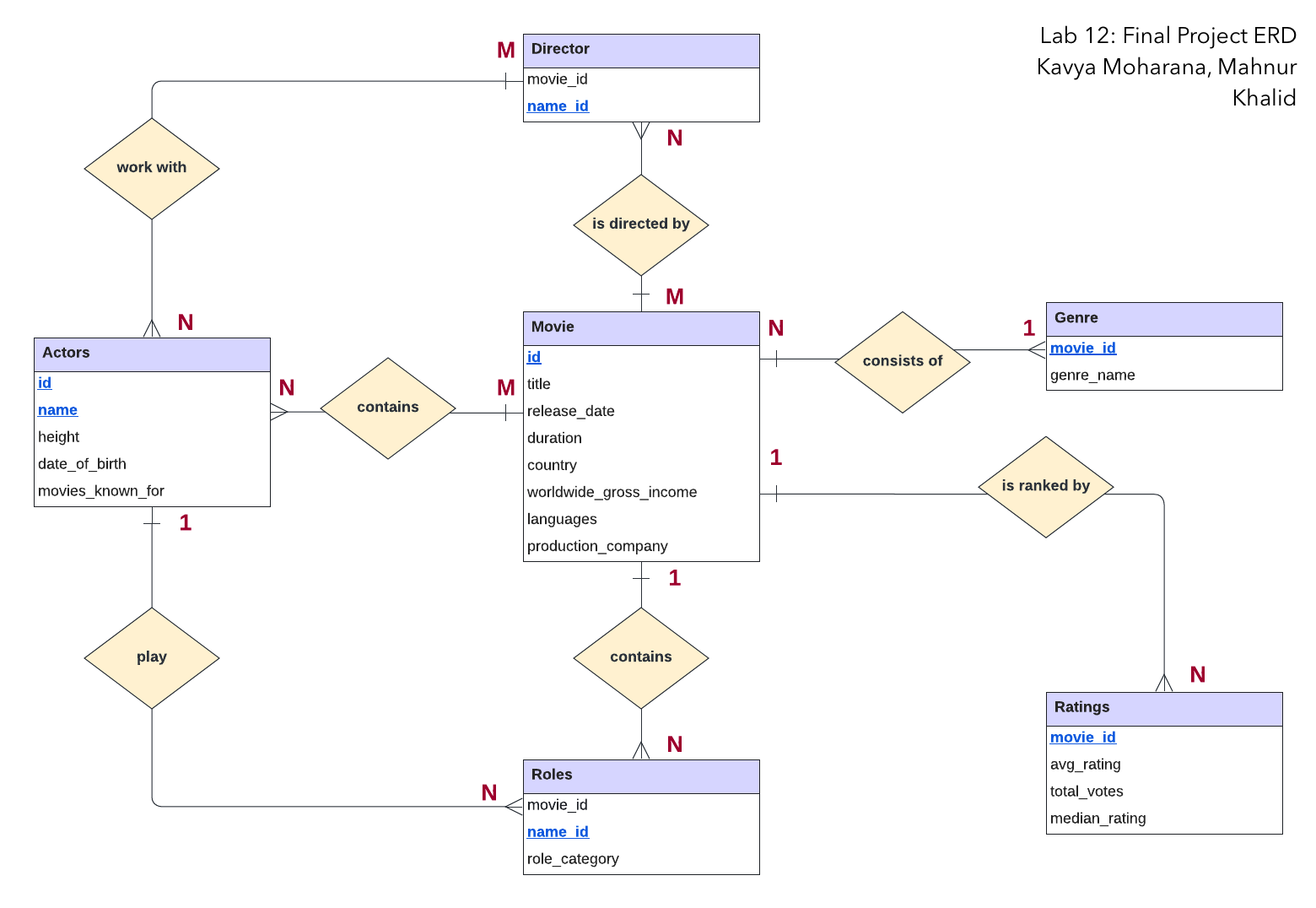

Entity-Relationship Diagram

This diagram, created with LucidChart, highlights the key entities, attributes, primary keys, and relationships for the database schema.

Creation of Database

Here are some of the tables created with SQLite.

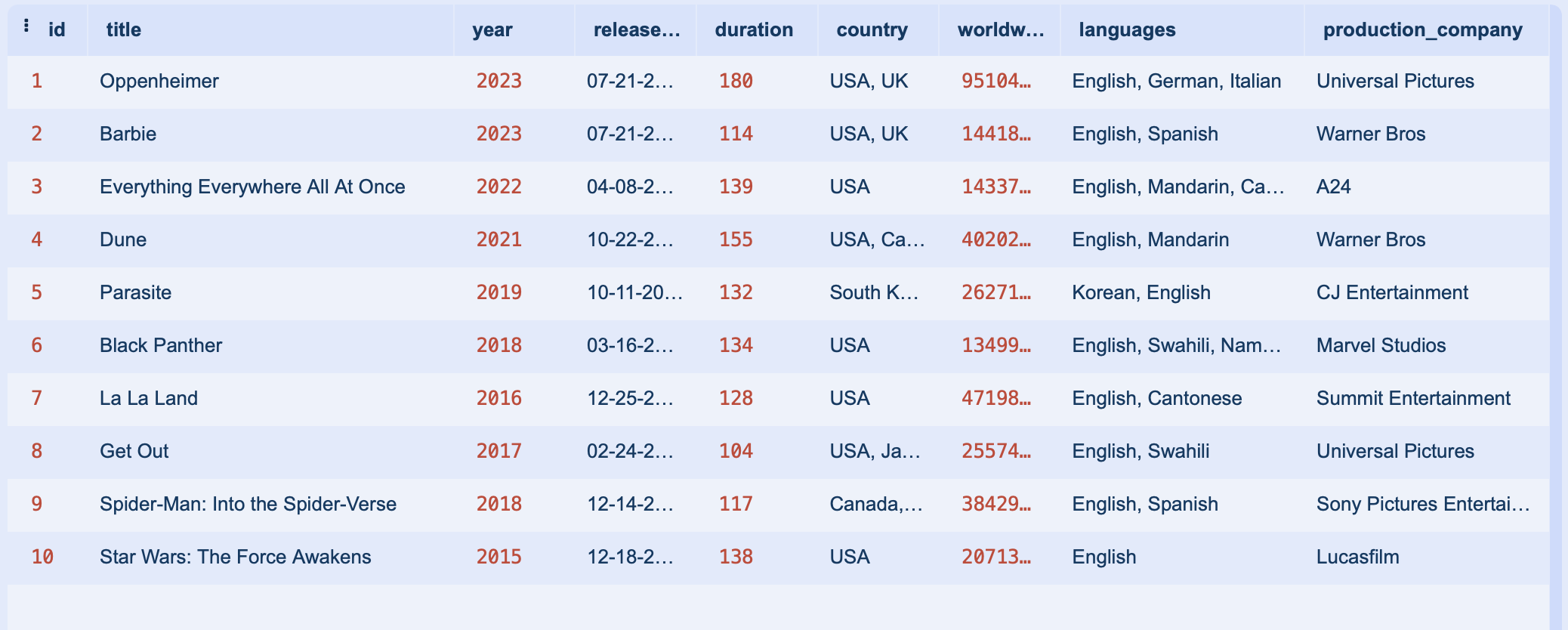

CREATE TABLE Movie(id INT PRIMARY KEY,
        title varchar(100),
        year INT,
        release_date varchar(100),
        duration INT,
        country varchar(100),
        worldwide_gross_income INT,
        languages varchar(100),
        production_company varchar(100)
    );

CREATE TABLE Genre(movie_id varchar(100) PRIMARY KEY,
        genre_name varchar(100)
    );

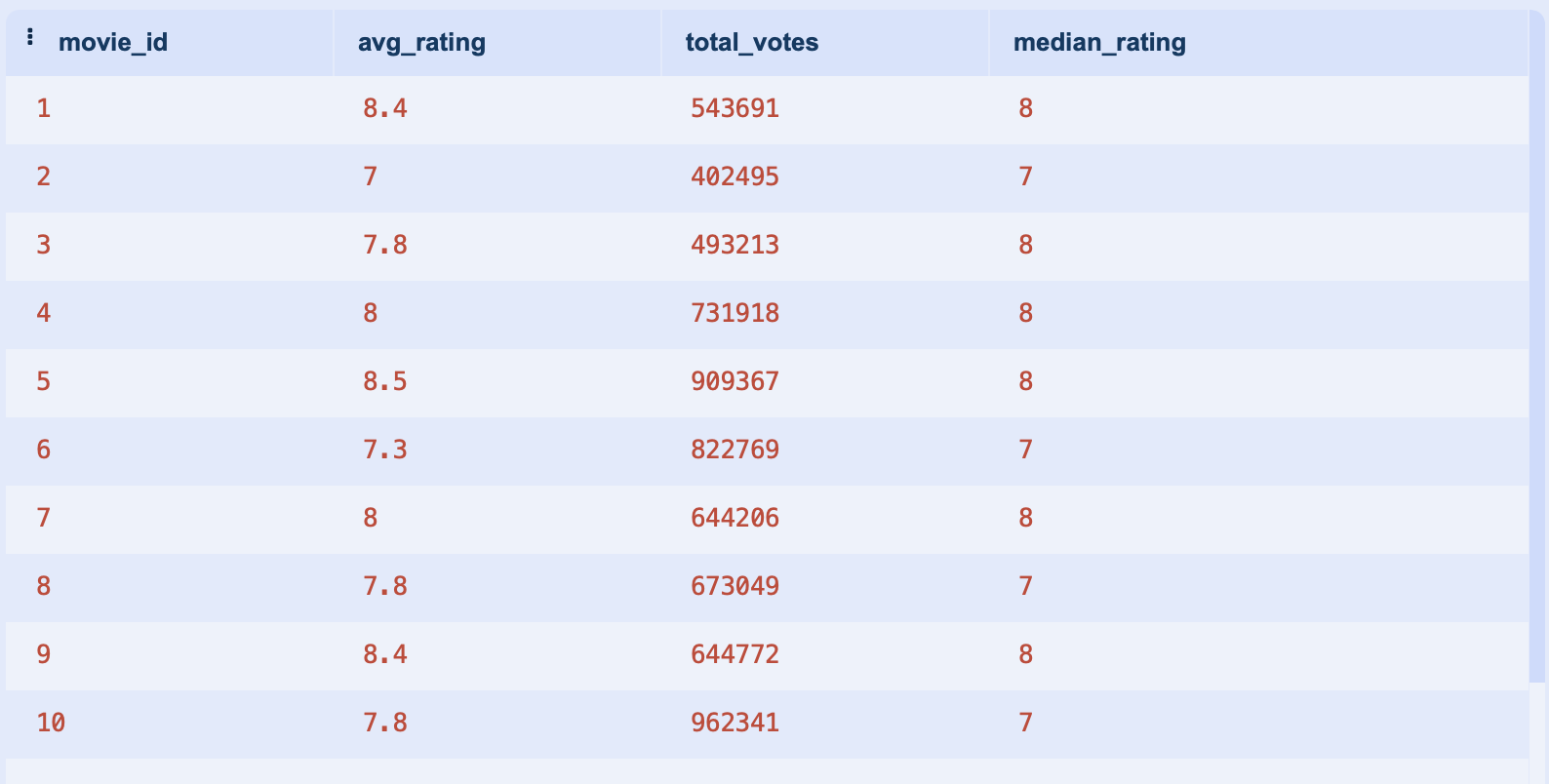

CREATE TABLE Ratings(movie_id varchar(100) PRIMARY KEY,
        avg_rating INT,
        total_votes INT,
        median_rating varchar(100)
    );

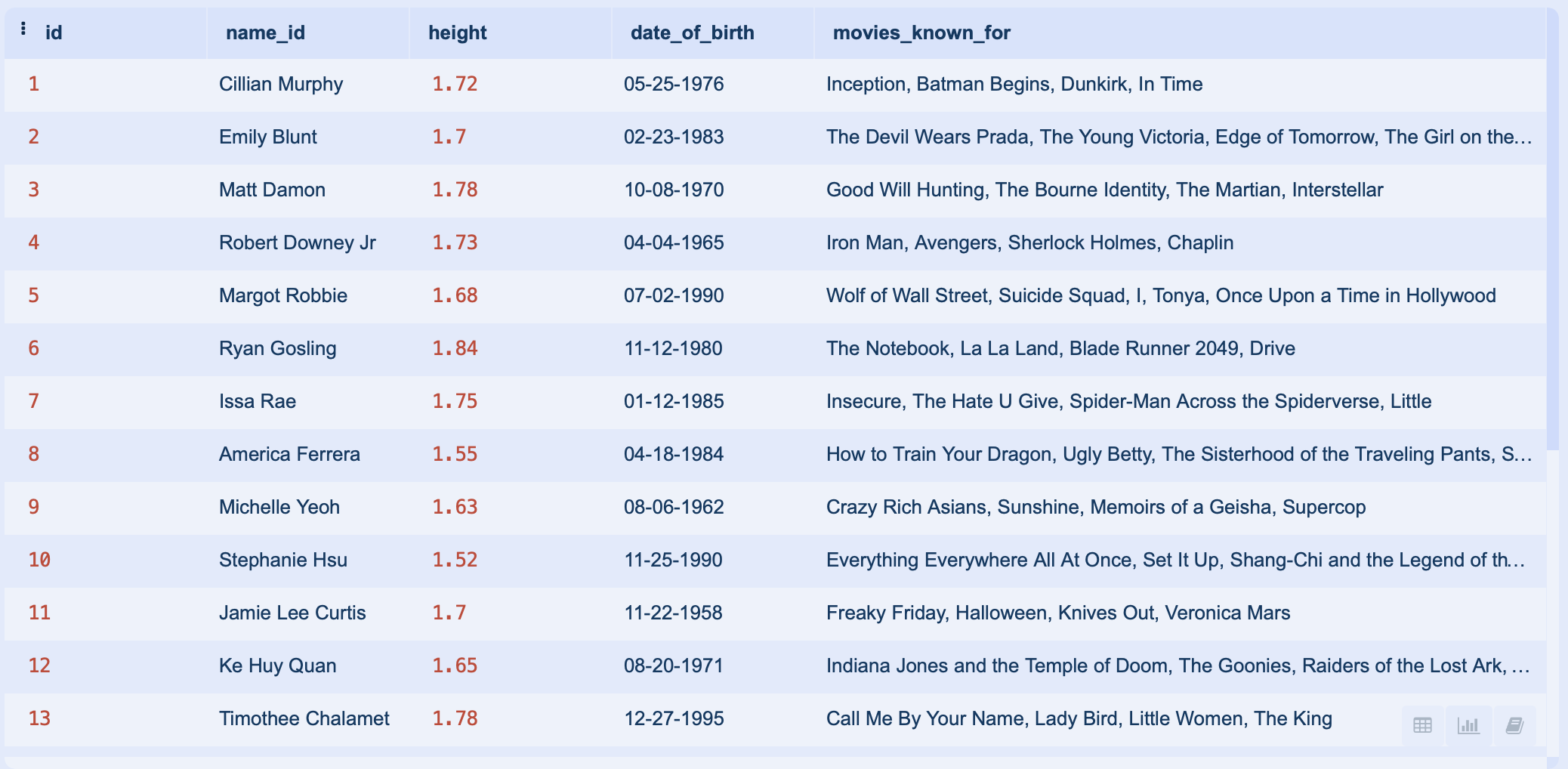

CREATE TABLE Actors(id INT PRIMARY KEY,
        name_id varchar(100),
        height INT,
        date_of_birth varchar(100),
        movies_known_for varchar(100)
    );
...

Sample Queries

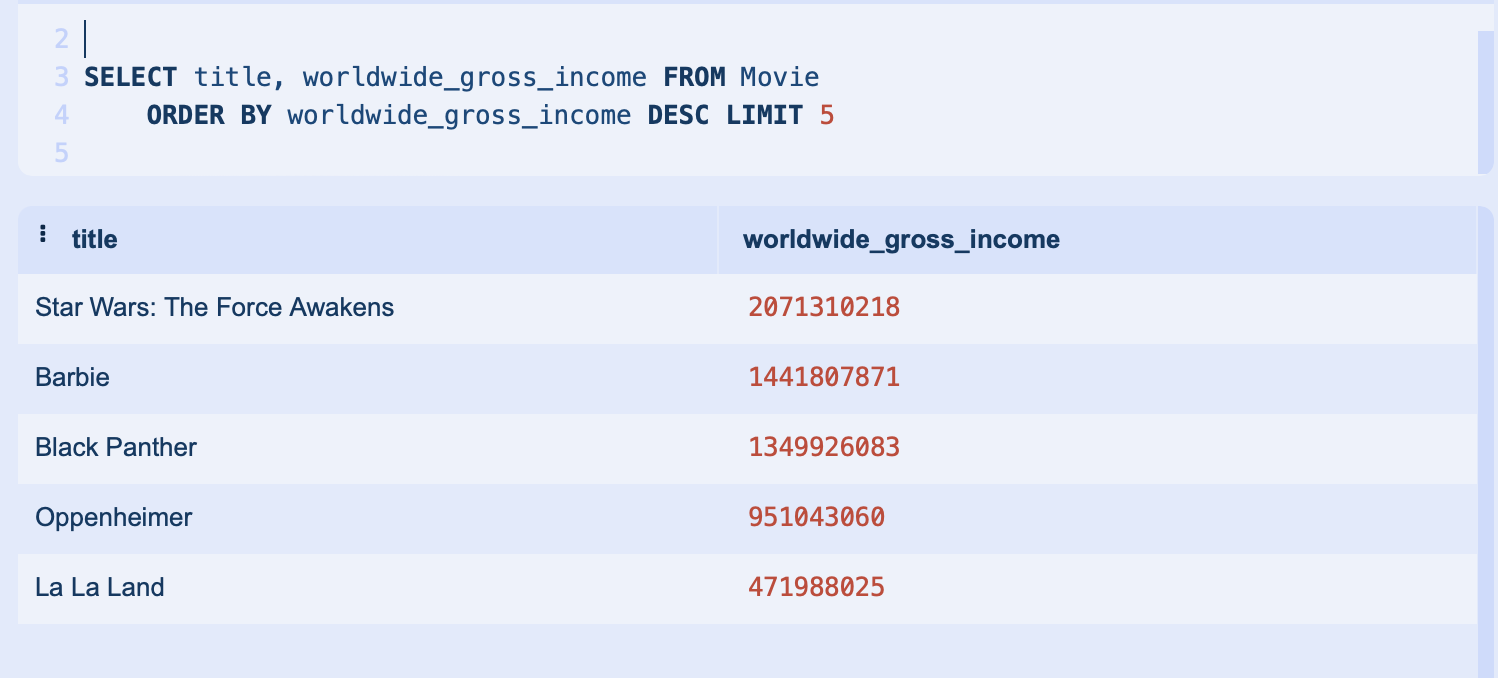

1. Top 5 movies that have the highest worldwide gross income

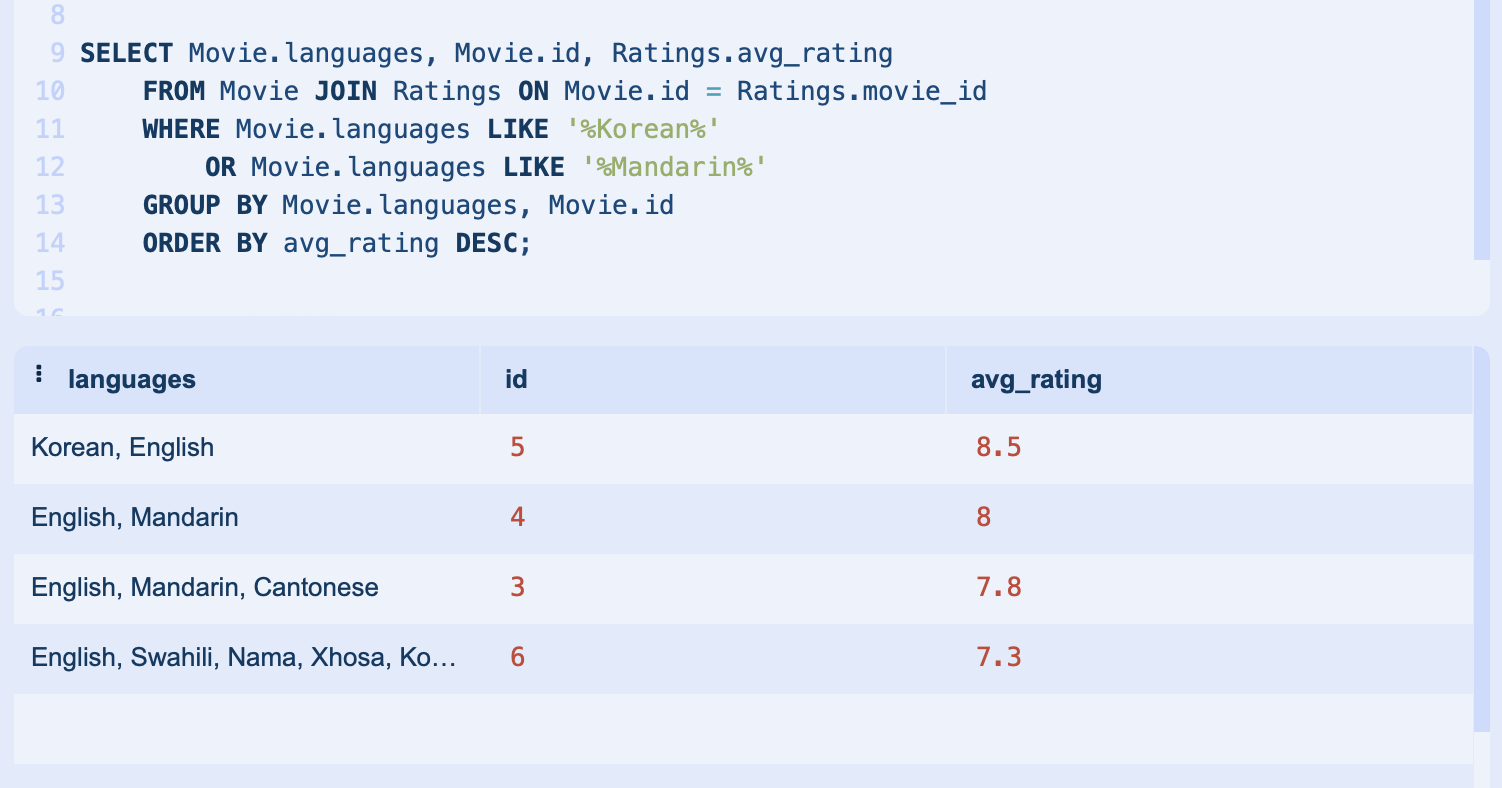

2. Average ratings for movies released in Korean or Mandarin

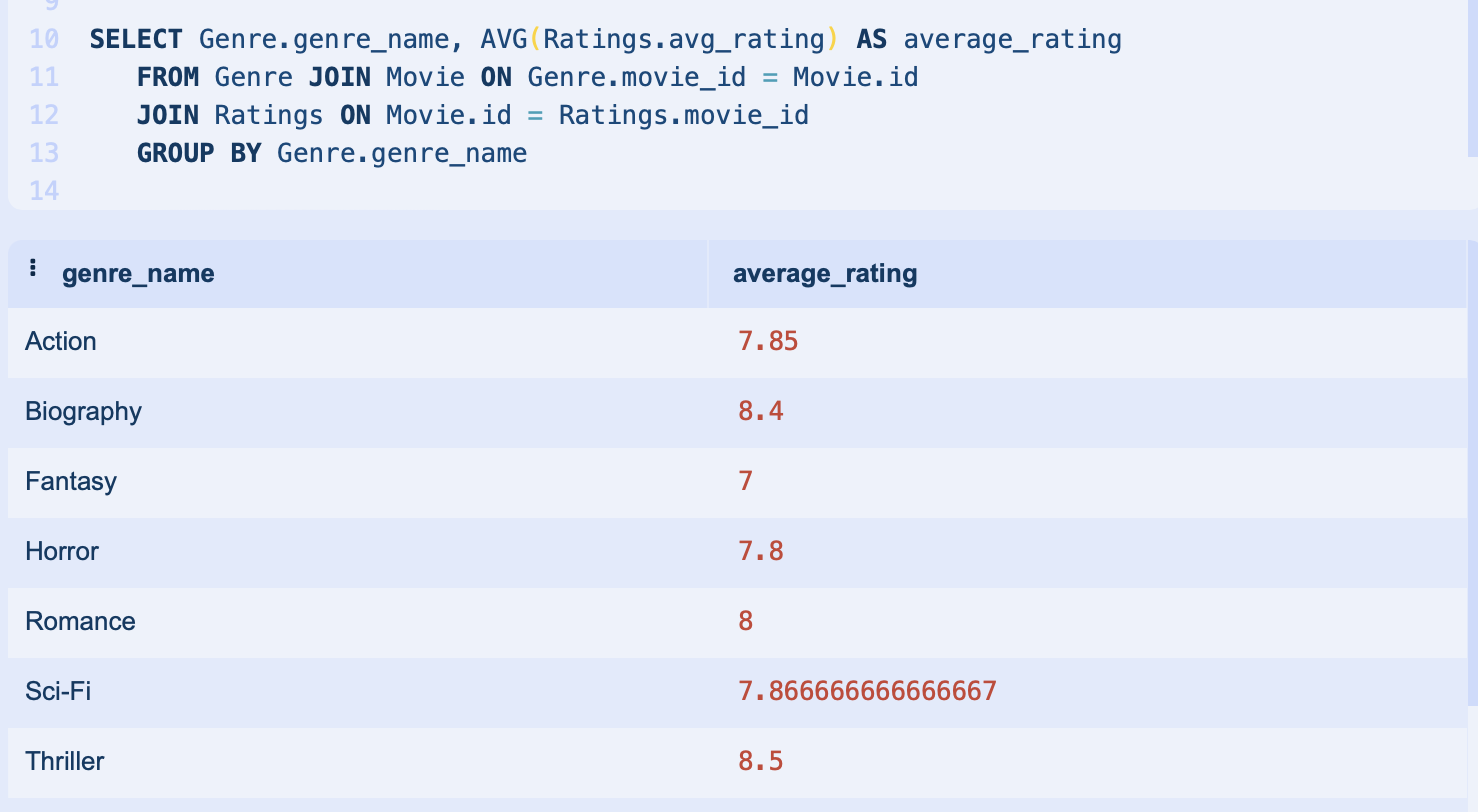

3. Average ratings for each movie genre
